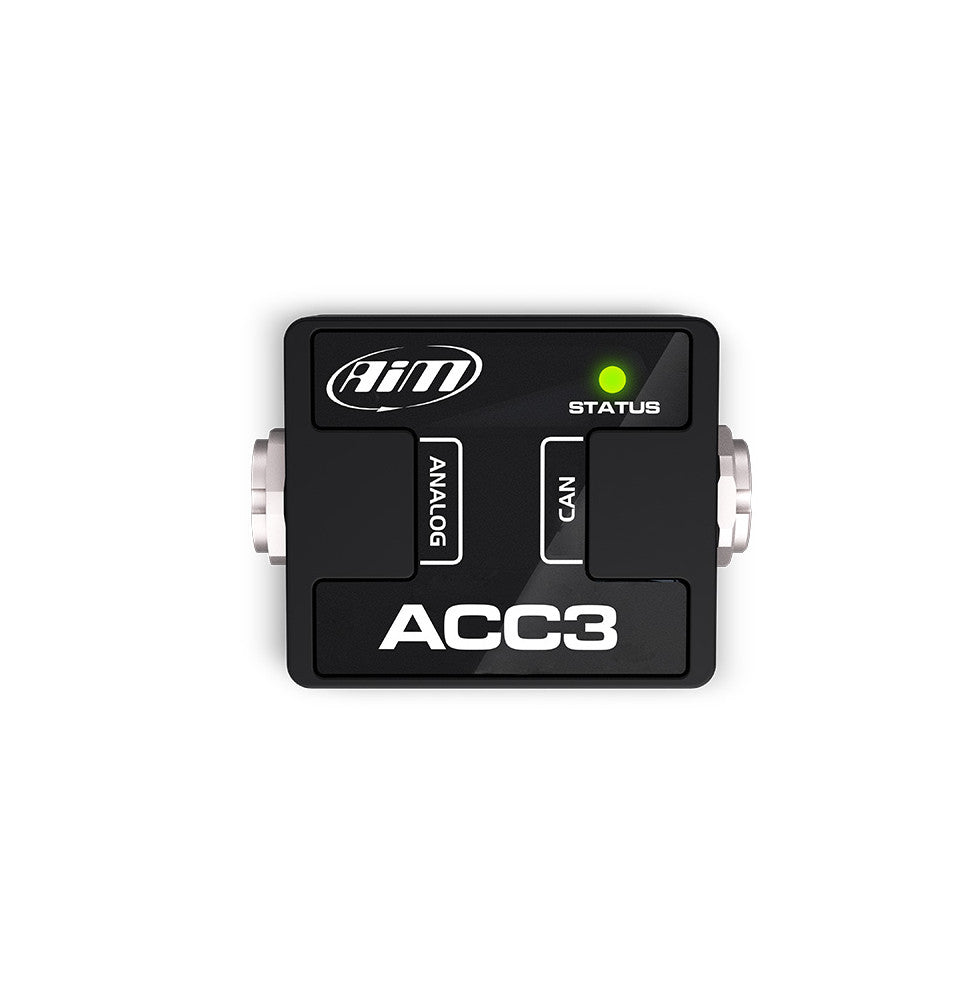

AIM ACC3

  • ACC3 Analog CAN converters manage up to 4 analog inputs to a max frequency of 10 kHz each:
    • Thermocouples
    • Thermoresistances
    • Analog signal 0÷5 V
    • Analog signal 0÷12 V
    Digital Speed Inputs
    The converters support 2-speed inputs at a maximum frequency of 10 kHz.

    SENSORS CONNECTIONS

    Split Harnesses
    They can manage many different sensors, from thermocouples to those with 0÷12V output.
    Please note that the thermocouples require dedicated compensated cables, so different kits and different harnesses are available.

    CHANNEL CONFIGURATION

    Once you have chosen the proper split harness from the available range, you can configure the channels based on the type of sensor you connect to the converter. ACC3 series supports up to four K-type thermocouples to manage the temperatures.

    SUSPENSION ANALYSIS

    ACC3 can be connected to Eclipse sensors.
    All the data acquired by AiM linear potentiometers can be managed through the new Suspension Analysis Tool in RaceStudio 3, for an even more complete performance analysis software.
