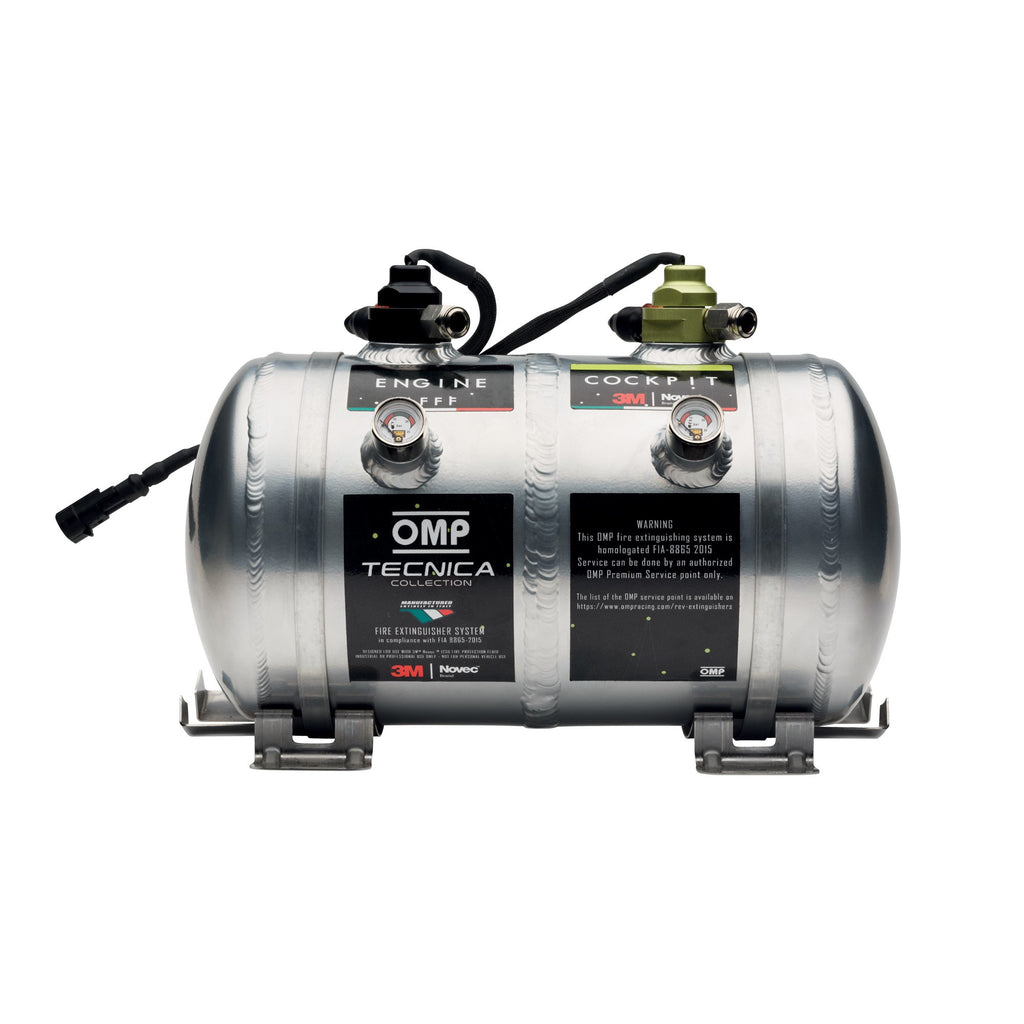

OMP CESAL5 EXINGUISHING SYSTEM FIA 8865-2015
-
1-4 DAYS DELIVERY
-
100% ORIGINAL AND QUALITY
OMP CESAL EXINGUISHING SYSTEM FIA 8865-2015
Is a fire extinguisher system, electrically activated, suitable for saloon cars. The system is homologated FIA 8865-2015. One single bottle made in aluminum. The extinguisher can turn off the fire in few seconds injecting 2 different fire-extinguishing medium. AFFF (Black side) to protect the engine bay and the clean agent NOVEC1230 (Green side) to protect the cockpit. The system it pressurized. 3 black nozzles are for the engine bay in order to protect the most critical and dangerous parts depending on the type of vehicle, 2 green nozzles are for the cockpit to ensure the driver protection. Fixing brackets, clamps, tubing and connections are included.
Diameter 160mm. Weight: 6 kg. Length: 350 mm.
Version suitable for medium-large sized cockpit.
Version suitable for small sized cockpit.
-
CESAL5S & CESAL5L spare parts and components
Tubings: CD/415 (90?ø end connection), CD/412 (3-way connection), CD/416 (straight connection), CD/414 (Y shaped connection), CD/323/A (aluminium tubing), CD/324/10/N (fire resistant sheath)
Nozzles: CD/411 (cockpit nozzle), CD/393/N (engine bay atomizer nozzle)
Electric parts: CD/360 (control box), X/CAB/360 e X/CAB/SSM, EA/467 (push button), X/181493 (protection for push button)
Other parts: CD/417 (fixing bracket and clamps), X/855 (Sticker) -
TECHNICAL INFORMATION
DIAMETER
160 mm
WEIGHT
6 Kg (only bottle)
LENGHT
350 mm (CESAL5L) - 309 mm (CESAL5S)
VOLUME
CESAL5L is homologated from 2.2m3 up to 4.1m3 cockpit volume.
CESAL5S is homologated from 1.35m3 up to 2.5m3 cockpit volume
Detailed Info is available on FIA Technical list 52 and in the FIA 8856-2015 standard. These file are available on FIA webiste
Homologated and suitable for intallation on saloon cars ONLY using the following fuels:
Gasoline
Diesel
Gasoline + up to 30% ethanol or methanol
E85
