AIM MyChron Kart Steering Position Sensor



With the MyChron Steering Sensor Kit you can compare the amount and the rate of the steering wheel input between drivers or use the information for driving coaching.

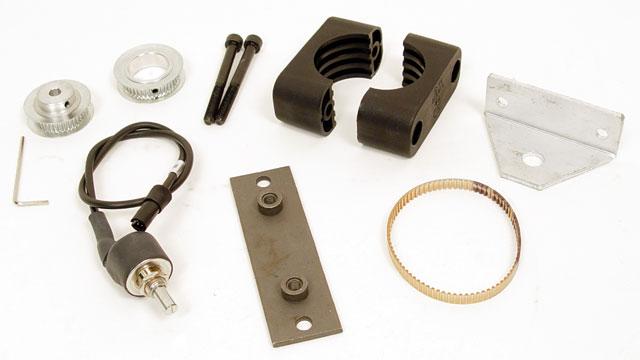

Did the driver react to a slide, or did he cause the kart to understeer? Measure and log driver steering input with the AiM Steering Angle Sensor. Includes a rotary potentiometer with a male 4-pin 719 connector, 2 toothed pulleys, 1 toothed belt, and 1 sensor mounting bracket.

The steering shaft pulley is designed to fit a 7/8" diameter shaft. Smaller shafts will need to add a bushing to fit the pulley. This sensor is designed to measure up to 5 complete turns of the steering column.

This sensor requires the addition of an Expansion Box or eBox when used with MyChron3 Extreme, MyChron4, and MyChron5 kart dashes.

Pro Tip: When mounting the sensor, locate the mount a little farther away than you might expect and use shims to bring the supplied bracket closer. If the belt tension is too loose, remove a shim or two to adjust.

If your steering column is larger than 7/8", consider using the AiM String Pot Steering Angle Sensor (Part No. MC-280) instead. The String Pot can work with any diameter steering shaft.



AiM MyChron Kart Steering Position Sensor Details:

  • Manufacturer: AiM
  • Manufacturer part number: X05SNST10G
  • Compatible with MyChron 4, MyChron4 2T: Yes
  • Compatible with MyChron 5, MyChron5 2T: Yes
  • Includes: Rotary potentiometer with a male 4-pin 719 connector, 2 toothed pulleys, 1 toothed belt and 1 sensor mounting bracket.
