AIM MYCHRON KART ACCELERATOR/BRAKE PEDAL POSITION SENSOR KIT

Code: MC-181
$135.00
In Stock
  • 1-4 DAYS DELIVERY

  • 100% ORIGINAL AND QUALITY

AIM MyChron Kart Accelerator/Brake Pedal Position Sensor Kit

This sensor uses a magnet to send kart throttle or brake position data to your MyChron5 or MyChron 4 kart data logger. Easy to connect and program the AiM MyChron Kart pedal Position sensor can give accurate data analysis of brake lock-up, and throttle position VS RPM & Lateral and Longitudinal G's. This is one of AiM's best kart sensors.

Simply install the magnet on the pedal near the pivot, and install the sensor in front of the magnet on the chassis. Connect the sensor to your MyChron4 Expansion box and calibrate using the MyChron4 calibration page.

Measures up to 35mm of pedal travel (magnet-to-sensor distance must be no less than 5mm at full throttle and no more than 40mm at zero throttle). Can be used on either brake or throttle pedal. Requires eBox, sold separately. Kit includes sensor, magnet, bracket kit, and 1 meter (3 ft) 719-to-712 (4-pin) adapter cable.

Note: This sensor is designed and set up for use on karts only. This sensor is not listed in the Race Studio configuration software.

AiM MyChron Kart Accelerator/Brake Pedal Position Sensor Kit Details:

  • Manufacturer: AiM
  • Manufacturer part number: MC-181
  • Manufacturer alternate part number: X05SNAFME0
  • Compatible with MyChron 4, MyChron4 2T: Yes
  • Compatible with MyChron 5, MyChron5 2T: Yes

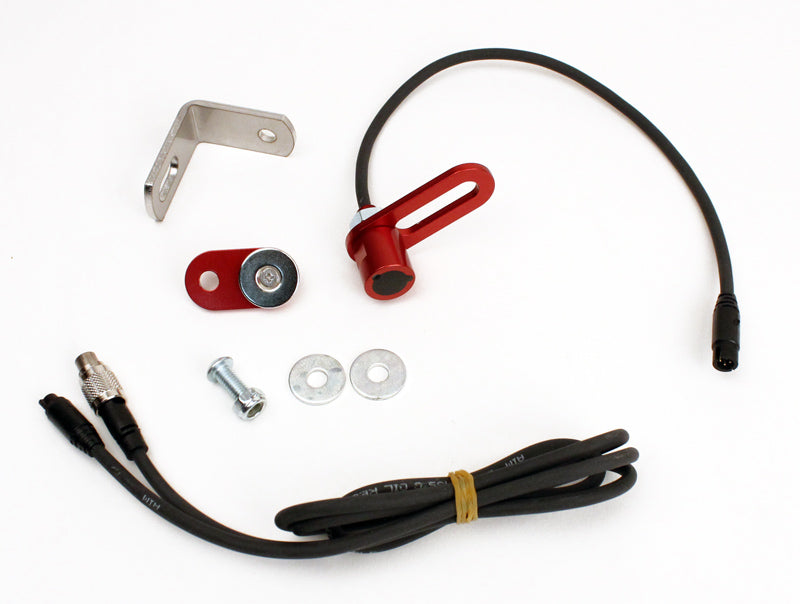

MyChron Kart Accelerator/Brake Pedal Position Sensor Kit Contents:

  • 1 sensor
  • 1 – 150 cm extension cable
  • 1 bracket kit including 1 magnetic bracket 1 “L” bracket, 2 washers, 1 M6x16 Allen screw, 1 nut
